Creating Your First SQL Datasource

To illustrate creating a Datasource, we'll use a public database of research data called “Rfam” as an example: https://docs.rfam.org/en/latest/database.html

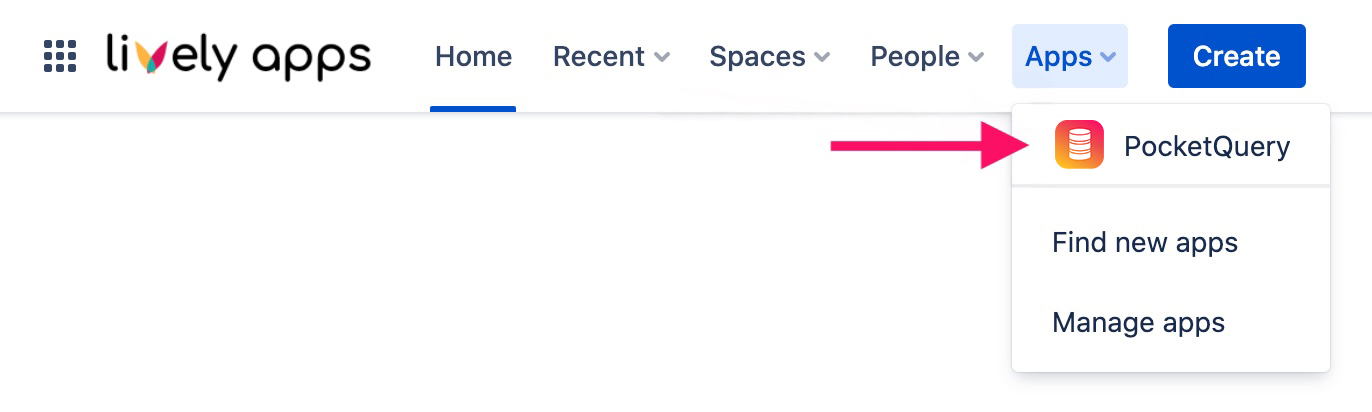

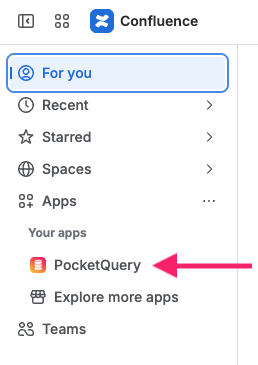

First, open the PocketQuery Administration by going to Confluence menu → Apps → PocketQuery:

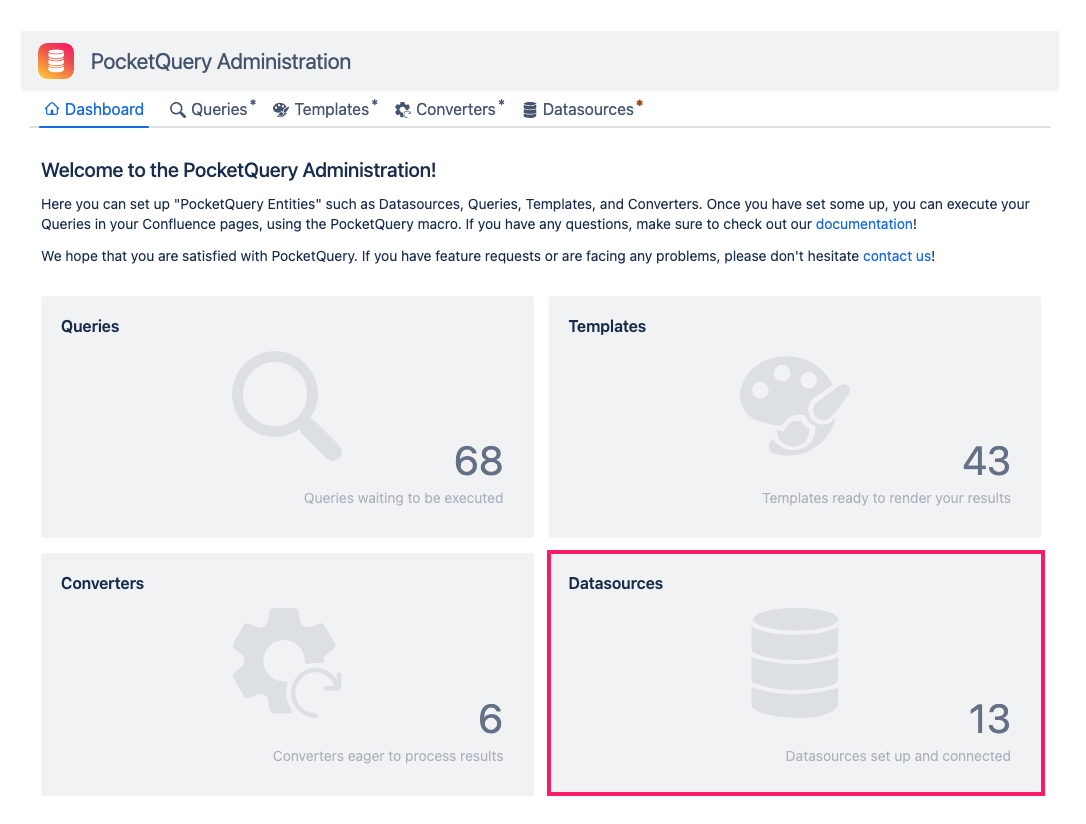

This will take you to the PocketQuery administration. Here, Confluence administrators can create different types of PocketQuery Entities. To get started, we need to create our first Datasource. Click on the Datasources panel which brings you to the Datasources tab:

Datasources panel in the PocketQuery administration

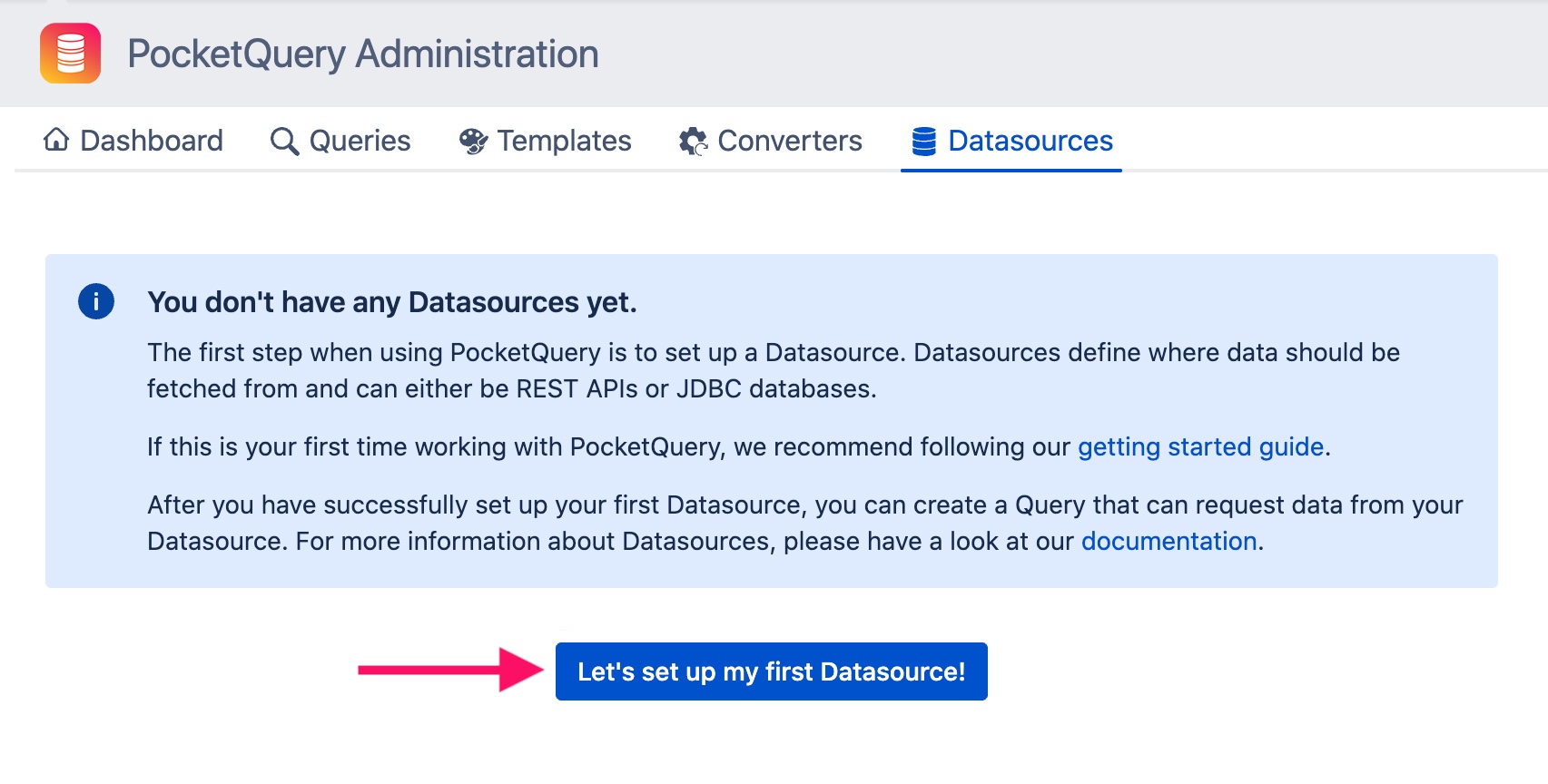

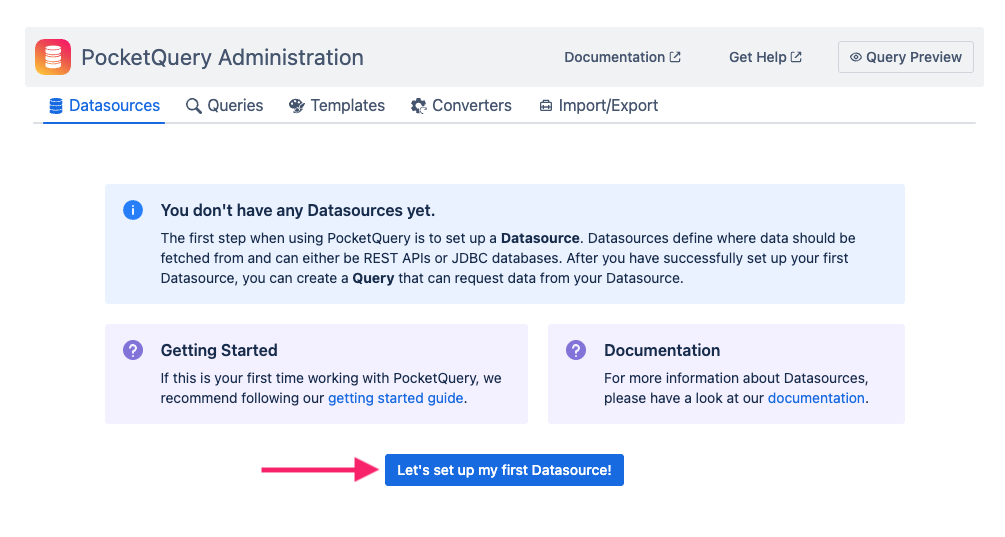

On the Datasources tab, click "Let’s setup my first Datasource" to open the configuration form:

Button to set up datasource

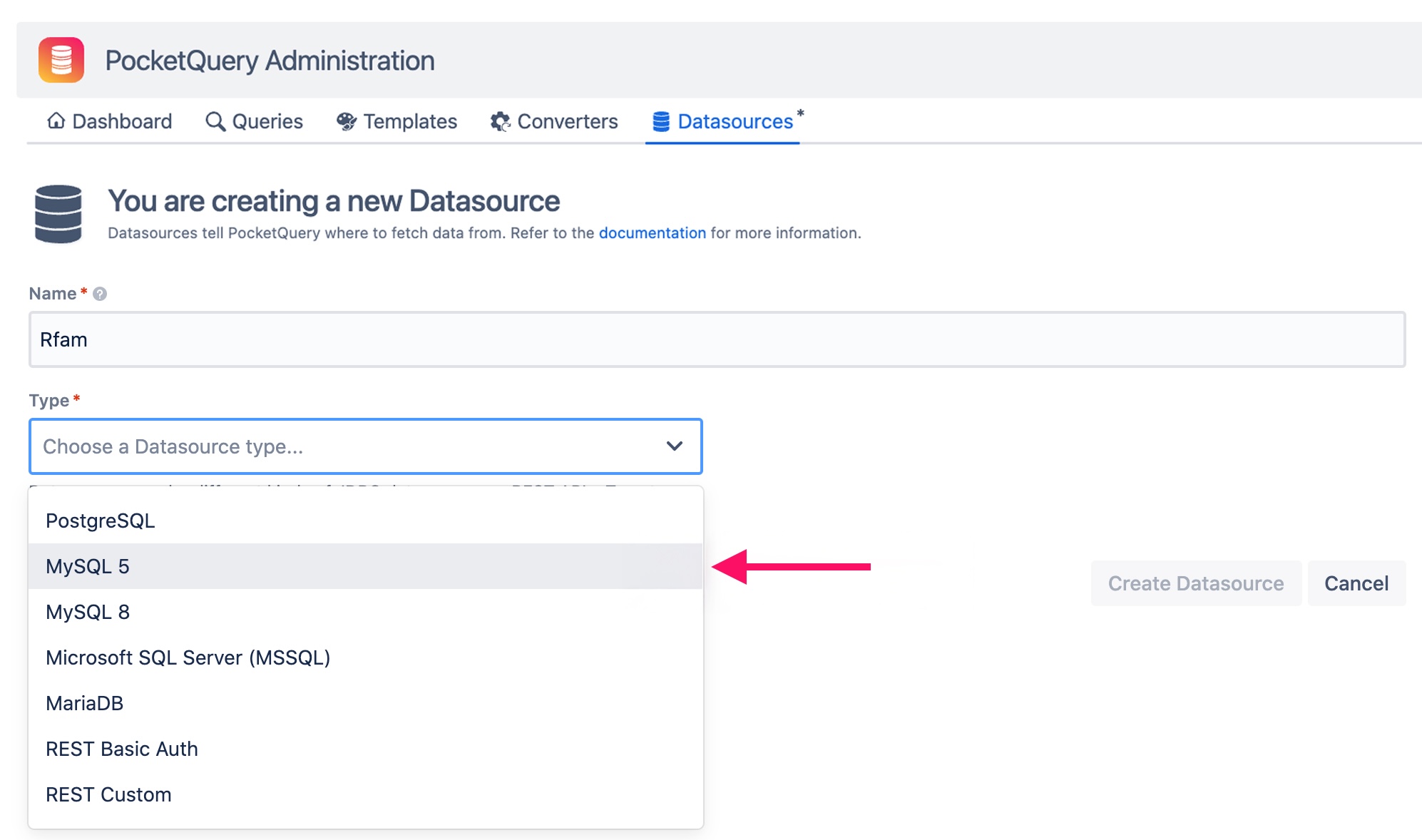

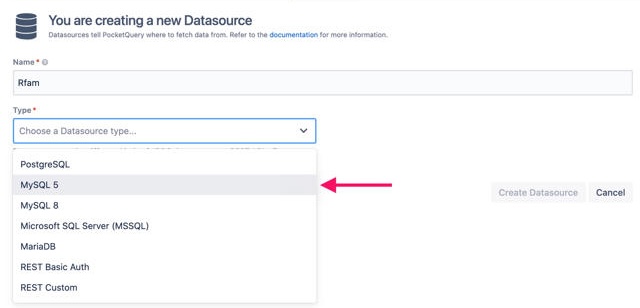

This will open a form that lets you specify a name for your Datasource (we’re going with “Rfam”, as this the name of the research database we’re using) and the type of your Datasource. As we are connecting to a MySQL 5 database, choose the “MySQL 5” type here:

Dropdown with Datasource types

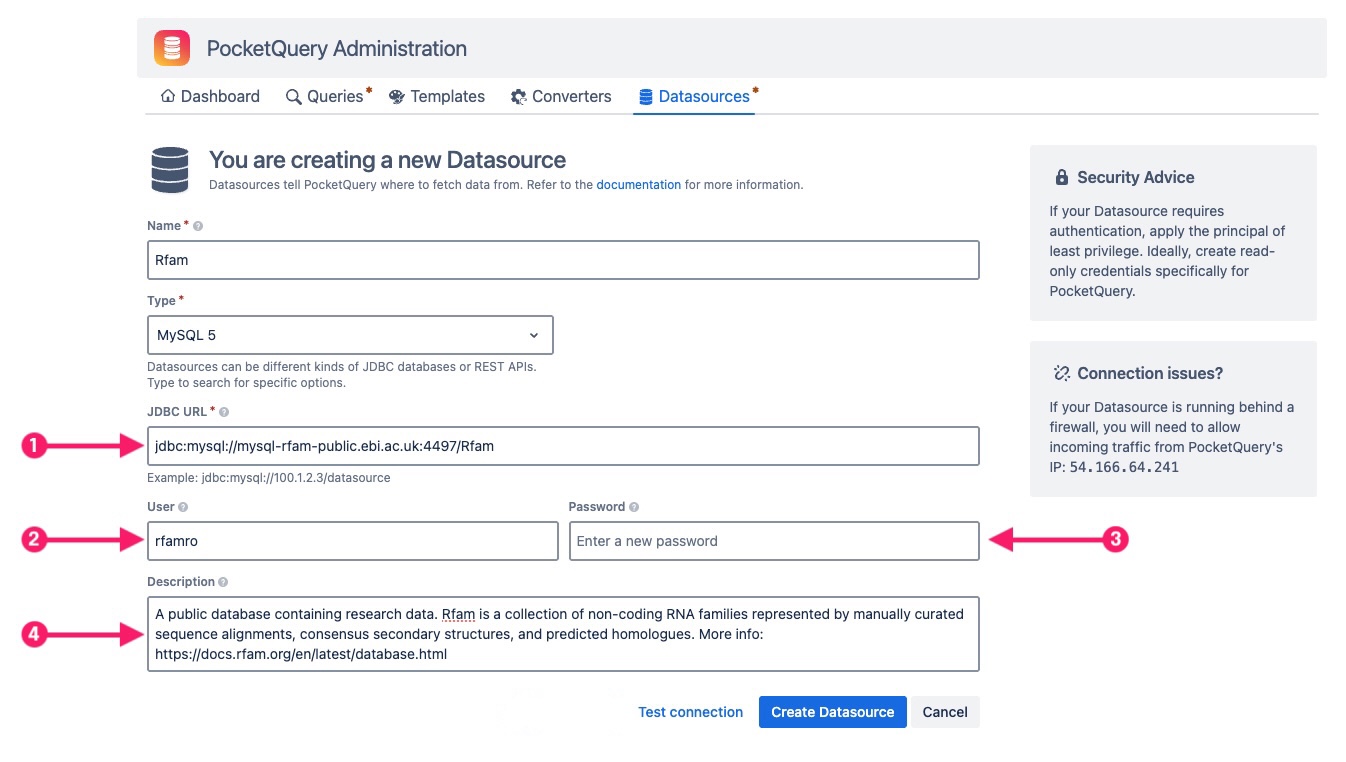

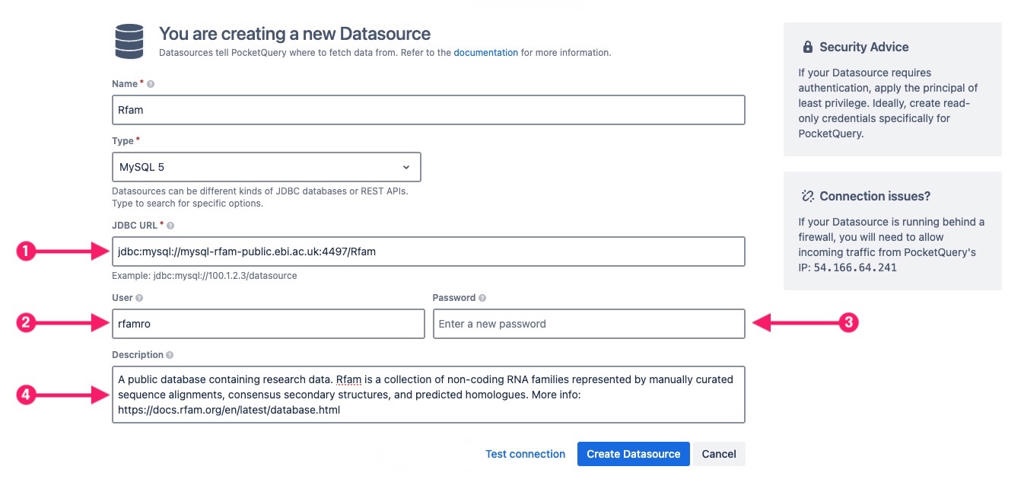

Once you have selected a type, more fields will show up. To connect to a SQL Datasource, you’ll typically need a JDBC URL, a user, and a password. To connect to our public research database, you need to enter the following values:


#

Field

Value

1

JDBC URL

jdbc:mysql://mysql-rfam-public.ebi.ac.uk:4497/Rfam

2

User

rfamro

3

Password

No password - leave blank

4

Description (Optional)

A public database containing research data. Rfam is a collection of non-coding RNA families represented by manually curated sequence alignments, consensus secondary structures, and predicted homologues. More info: https://docs.rfam.org/en/latest/database.html

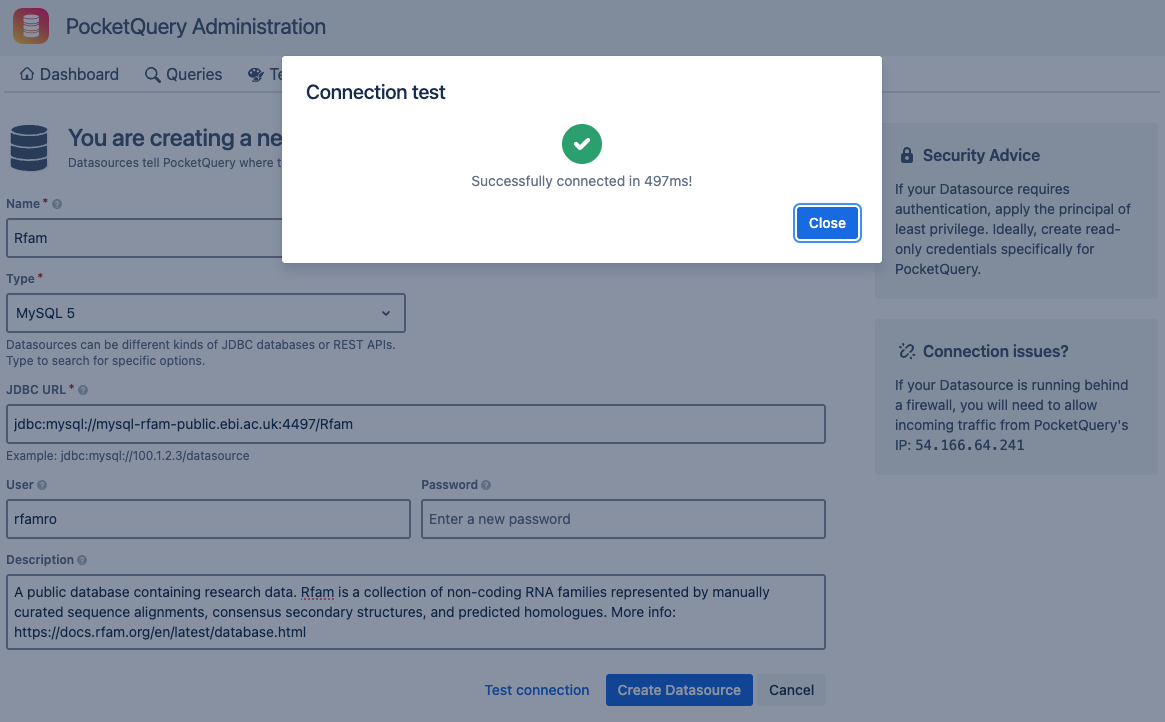

After entering all the details, click the Test Connection button and see if you can connect to the database:

Screen with successful connection test

Awesome! Hit the Create Datasource button and we’re done creating our first Datasource!

Continue with “Creating Your First SQL Query
